Product:

Soundtraxx 881006 – ECO-21PNEM-Econami Steam Sound Decoder, 21-pin NEM version.

Description:

The Econami is a full-featured line of digital sound decoders designed with value in mind.

Available in five formats to suit a variety of steam and diesel locomotives, Econami provides high-quality, 16-bit sound, Hyperlight lighting effects, and Hyperdrive2 advanced motor control for enhanced realism. New features include Flex-Map technology, an easy-to-use method for assigning any function to any function key.

Steam and diesel versions include a selection of exhaust chuffs or prime movers, along with 16 whistles or airhorns to suit the most popular models. In addition, each decoder features multiple options for airpumps or compressors, bells, and couplers for even more customization.

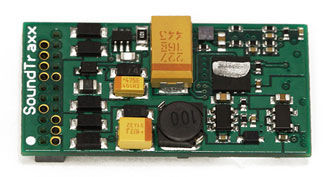

Econami ECO-21PNEM

The ECO-21PNEM mates nicely to any model with the NEM-supported 21-pin socket.

Specifications:

Dimensions:               30.5mm x 15.5mm x 6.5mm or 1.2" x 0.61" x 0.26"

Maximum current:     1.0 Amp
Functions:                 6

Function rating:         100mA (each output)

Audio amplifier:         2 Watt, 8ohm load

DCC Track Voltage     7.5V – 22V
