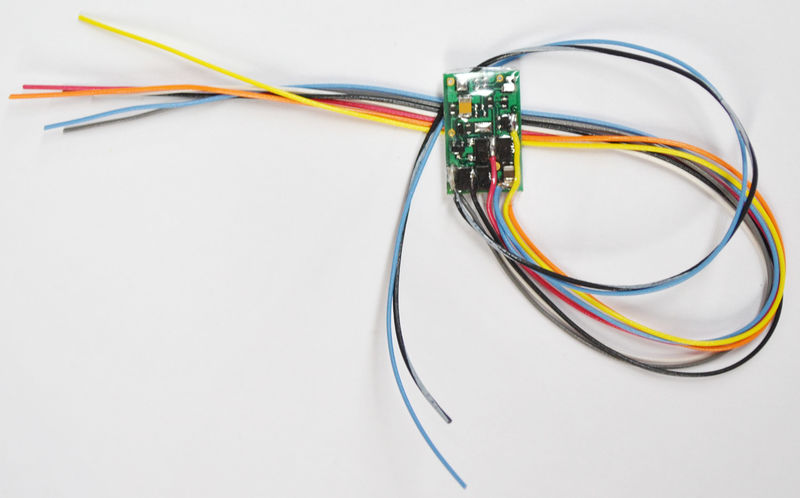

TCS:1424 TCS M1-KA Micro 2 function decoder with Keep Alive wires.

The M1 is a micro, hardwire HO & N scale decoder. It is a full featured decoder small enough for N scale, but strong enough for HO scale.

The M1 is a motor control decoder with 2 lighting functions (forward and reverse light).

This decoder is suitable for the hardwired situations in older locomotives.

The M1 can also be purchased with 8 pin NMRA harnesses of a few different lengths attached (see other listings or contact me).

Included is the TCS auto-adjusting BEMF for outstanding slow speed performance and hassle free set up. Also includes Quiet Drive for super quiet

engine performance.

Dimensions: 0.567" x 0.359" x 0.135" or 14.4mm x 9.12mm x 3.43mm.

This is a 2 function decoder, Function rating 100mA, Continuous/Peak rating 1.0/2.0 Amp.


Included is the TCS auto-adjusting BEMF for outstanding slow speed performance and hassle free set up. Also includes Quiet Drive for super quiet
