SDXH166D Motor and function decoder 20023

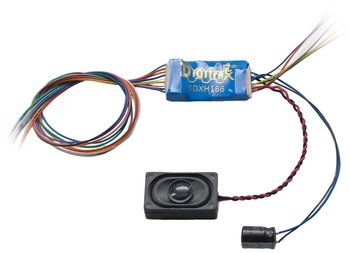

Digitrax SDXH166D Motor & Function decoder

DTX:20023
Price: $123.20
Available (1)

Multi project sound scheme including GP38 diesel (default), GE Evolution diesel, SD70 diesel, GP10 diesel, RS1 diesel, C420 diesel, Steam type 1 (based on UP3985) and Steam type 2 (based on K27).  Simply select the sound scheme for the loco where you install the decoder and you are ready to run.




  • 1.0 Amp/2.0 Amps Current Rating

  • 6 FX3 Functions-200mA total current

  • FX3 Output optimized for LED & bulbs

  • Configurable FX3 pulse on all function leads

  • New Series 6 features

  • 4 Simultaneous Voices

  • Customizable 16, 12 or 8 bit sound projects







  • Use PR3 and SoundLoader 2.0

  • 16 Megabit on board sound memory

  • 8 Ohm 16 x 26 x 9mm box speaker included

  • 1 Watt sound output

  • 330uF Capacitor for sound hold up included

  • Cam input synchronized steam chuff

  • Works with PX112-10 Power Xtender

  • Decoder Body Size 1.28” x 0.67” x 0.25”
